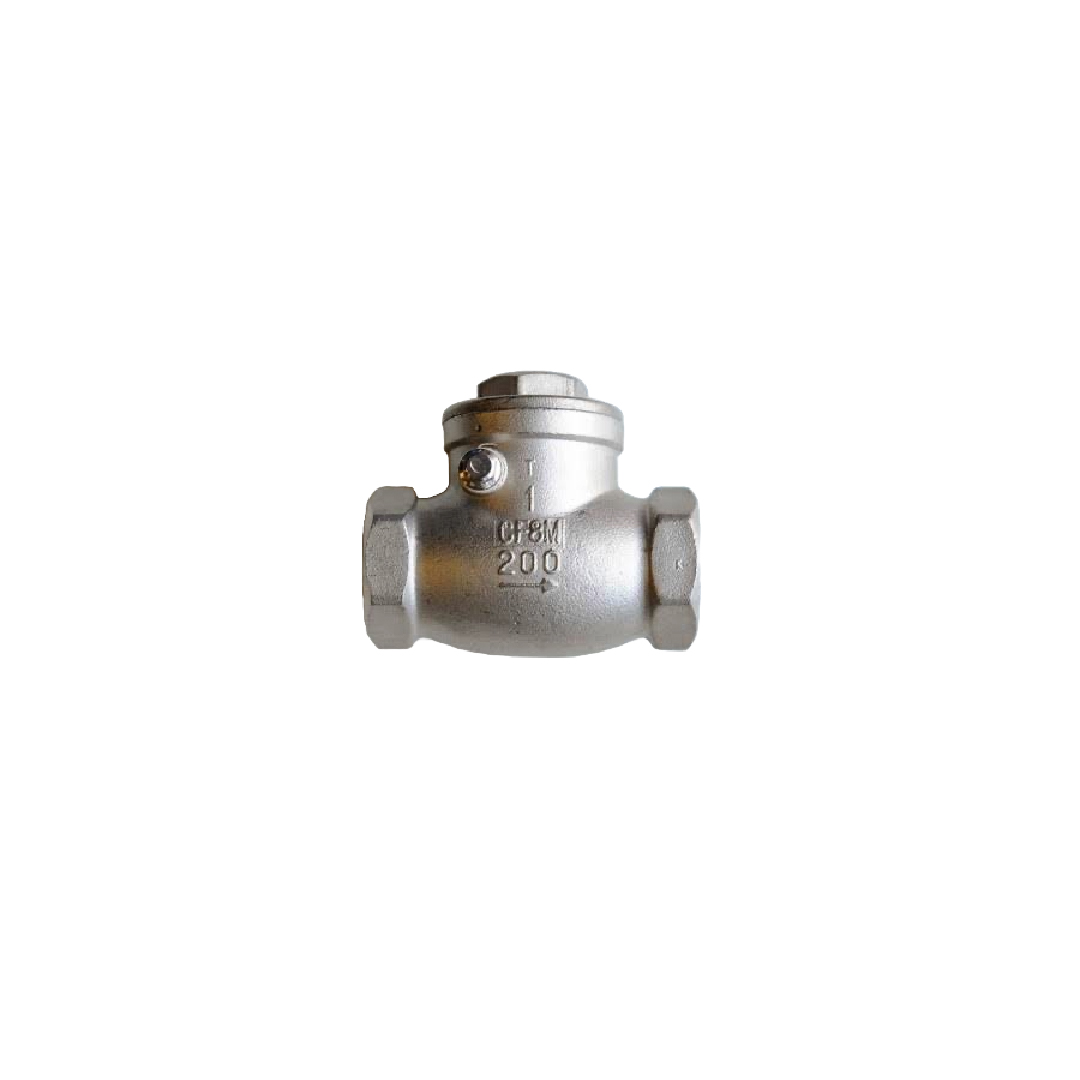

Our Stainless Steel Swing Check Valve Screwed BSP offers excellent sealing capabilities for both high and low pressures; general purpose, industrial and HVAC applications include water, heating, air-conditioning plants and compressed air systems. A reliable, low cost high performance valve featuring a Stainless Steel body, PTFE cap and hinge pin seal.
Installed either vertically (upwards only) or horizontally.
Key features:
- Available in Screwed BSP, sizes: 1/4″ to 3″
- Temperature range: -20°C to 180°C.
- Pressure rating: up to 600 PSI.
For full details please download the accompanying datasheet.
Details
| End Connection | BSP |
|---|---|
| Design / Type | Swing Check |
| Industry / Approvals | HVAC |
| Body Material | Stainless Steel |
| Size | 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80) |
| Main Features | 1/4" to 3" |
