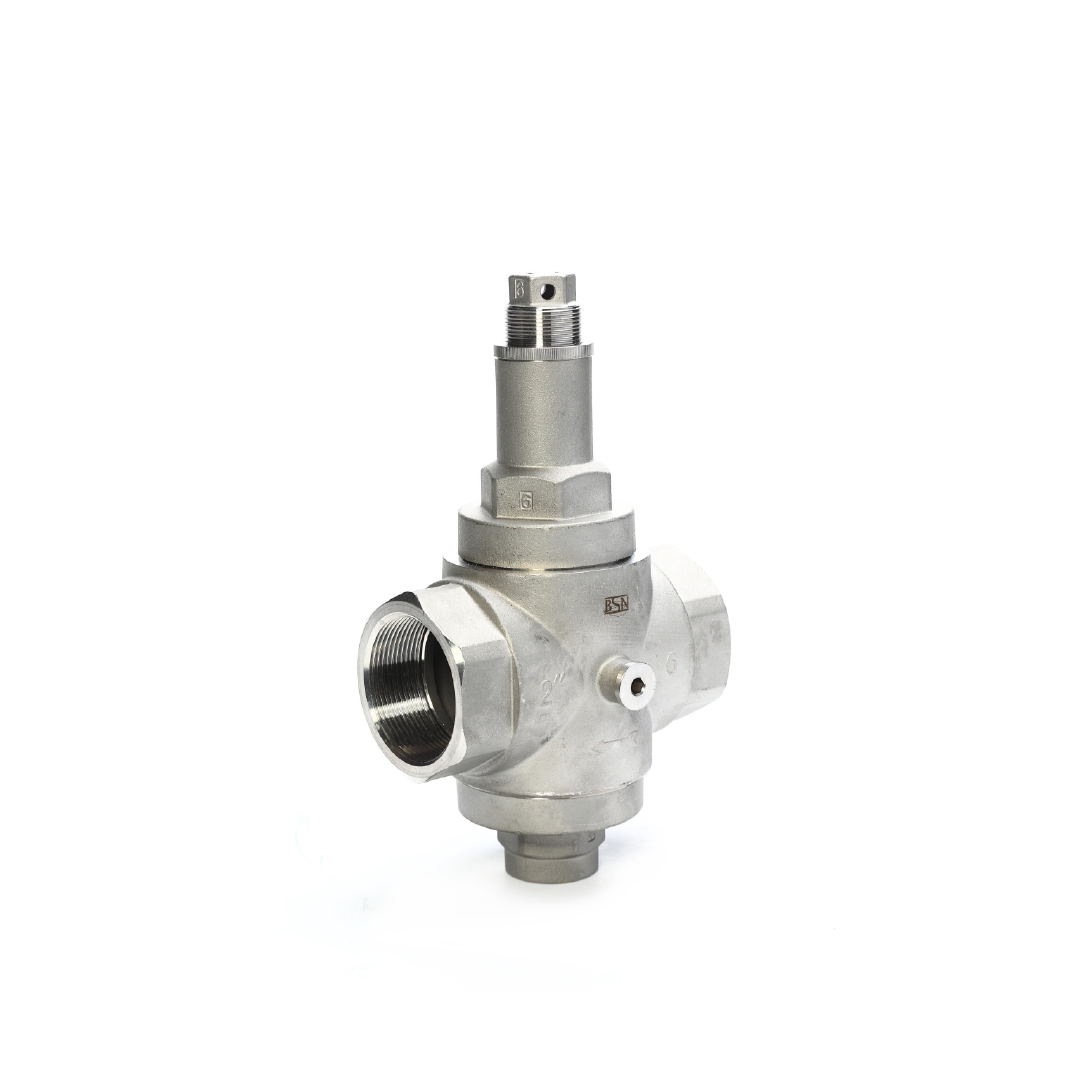

Our stainless steel pressure reducing valve features a stainless steel body, NBR seals, and is supplied with a pressure gauge that displays outlet pressure. Available in the following sizes: 1/2” (DN15), 3/4” (DN20), 1” (DN25), 1 1/2” (DN40), and 2” (DN50), with screwed BSPT connections.
The outlet pressure can be adjusted with an external adjustment screw for sizes ½”, ¾”, and 1”, and an internal adjustment screw for sizes 1 ½”, and 2”. Available with outlet pressures: 1.5 – 6 Bar, 4 – 10 Bar, and 8 – 13 Bar.
The maximum inlet pressure is 20 Bar for air, and 25 Bar for water. The valves have a working media temperature range of -15°C to +60°C maximum, maximum media viscosity of 40 centistokes, and pressure tested to 35 Bar.
The valve can be mounted in any position.
