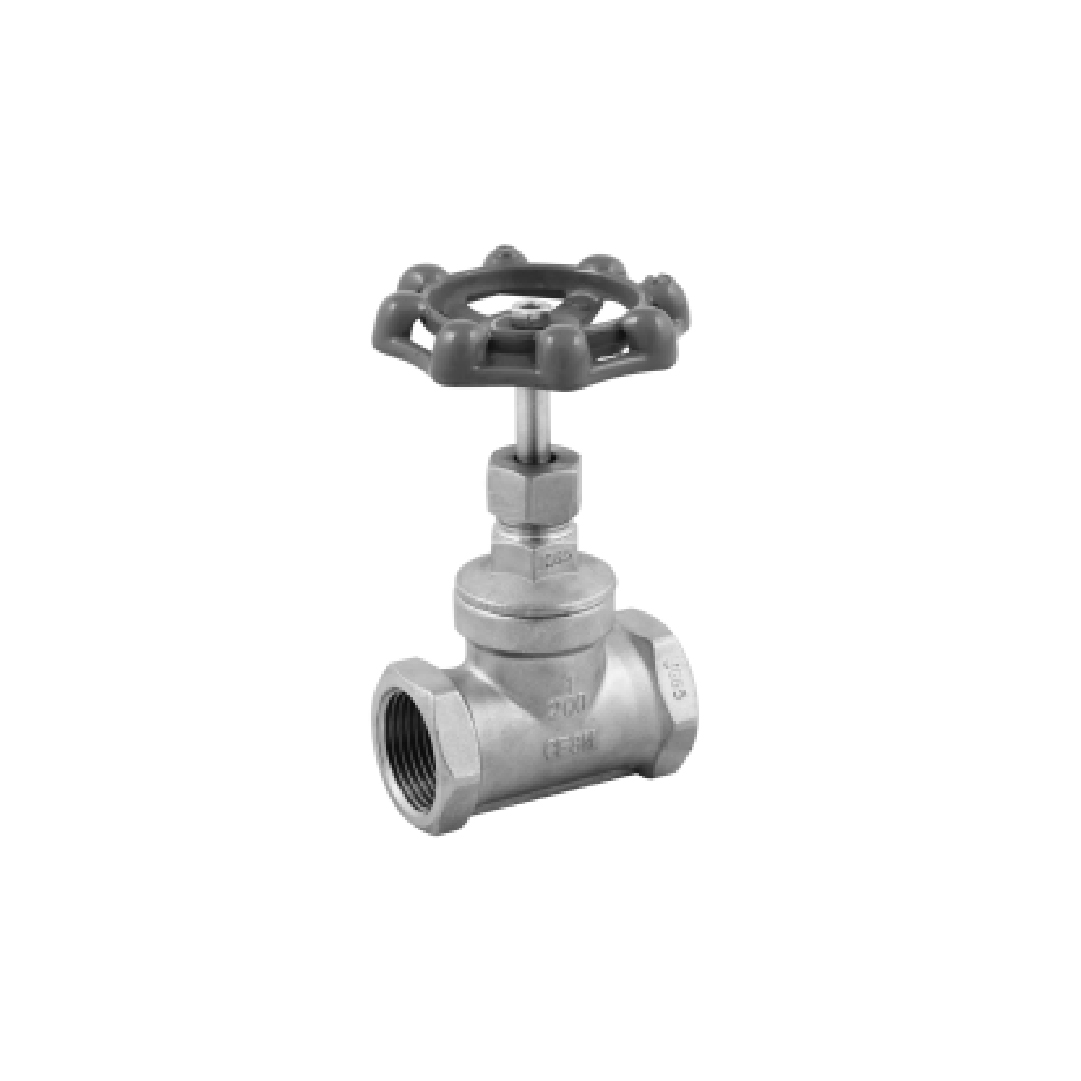

This economy globe valve features an investment cast CF8/CF8M stainless steel body and cap, a non-rising stem and aluminium alloy hand wheel. Suitable for use with hot and cold water, oil, and gas. Inspection test to API 598, EN12266. PED97/23/EC (CE0035). Available in sizes: ¼” (DN8). 3/8” (DN10). ½” (DN15), ¾” (DN20), 1” (DN25). 1 ¼” (DN32), 1 ½” (DN40), and 2” (DN50) with female threaded connections to ISO 228/1 (BSPP), and ANSI B2.1 (NPT). The valve has a working temperature of -20°C to 180°C, and is pressure rated at 200 PSI/PN16.
Details
| End Connection | BSP, NPT |
|---|---|
| Size | 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50) |
| Body Material | Stainless Steel |
