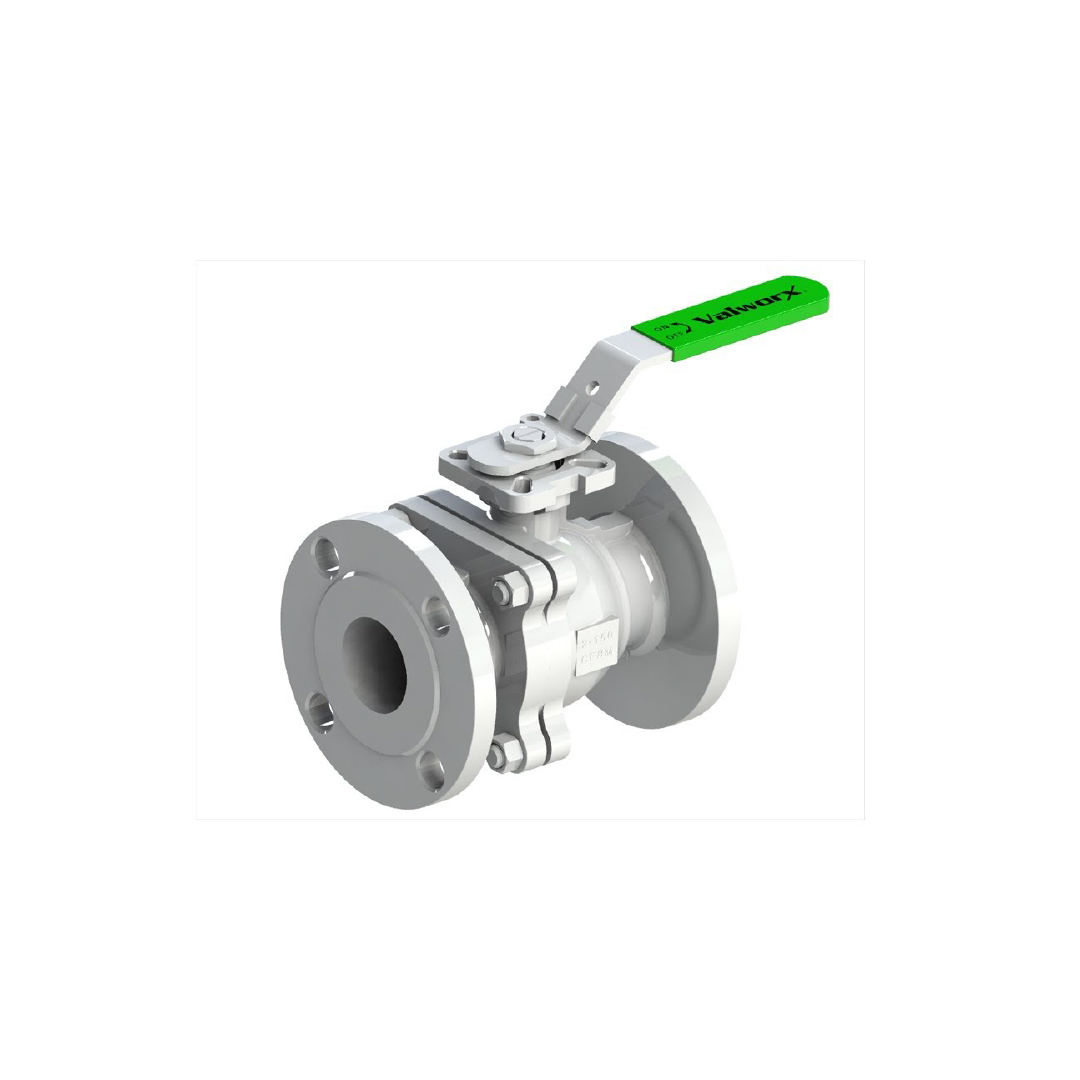

An economy ball valve has a 2-piece, full-bore, stainless steel body with a built-in ISO 5211 direct mounting pad for easy automation, features TFM1600 seats, and graphite seals.
Available in sizes: ½” (DN15), ¾” (DN20), 1” (DN25), 1¼” (DN32), 1½” (DN40), 2” (DN50), 2½” (DN65), 3” (DN80), 4” (DN100), and 6” (DN150) with ANSI 150 flanges.
The valve is suitable for saturated steam up to 12 bar. Certified NACE MR0175, Fire Safe API 607 4th edition, and ATEX approved.
Details
| End Connection | Flanged ANSI 150 |
|---|---|
| Body Material | Stainless Steel |
| Size | 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 6" (DN150) |
