Butterfly valve

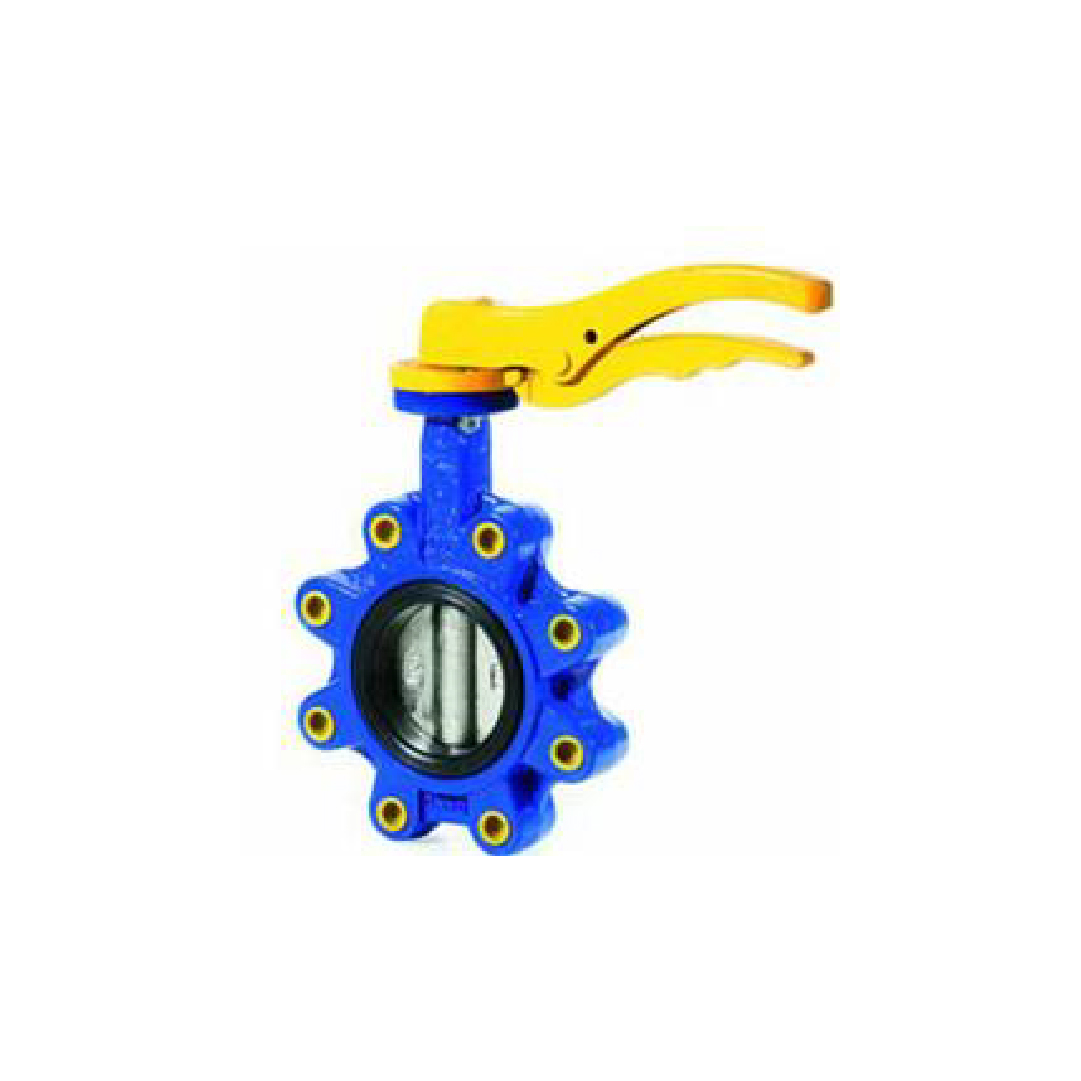

Economy Lugged Butterfly Valve – NBR Liner

An economy lugged and tapped butterfly valve. The valve features an epoxy coated ductile iron body, a CF8M stainless steel disc, and NBR liner. The body is lugged and tapped to mount between PN16 flanges. Available in sizes 1 1/2” (DN40), 2” (DN50), 2 ½” (DN65), 3” (DN80), 4” (DN100), 5” (DN125), 6” (DN150), 8” (DN200), 10” (DN250), and 12” (DN300). Available with lockable lever or gearbox operation up to 10”, and 12” with gearbox operation. The valve has a working temperature range from 0°C to +80°C, and maximum working pressure of 16 bar.

Categories ,

Key Features

  • Epoxy coated ductile iron body
  • Lugged & tapped for PN16 flanges
  • CF8M stainless steel disc
  • NBR seat
  • Sizes available: 1 1/2” to 12”
  • Lockable lever or gearbox operation
  • Working temperature range: 0°C to +80°C
  • Max. working pressure: 16 bar

Details

Design

Lugged

Body Material

Stainless Steel

Size

1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)

Disc Material

Stainless Steel

Liner

NBR (BUNA)
