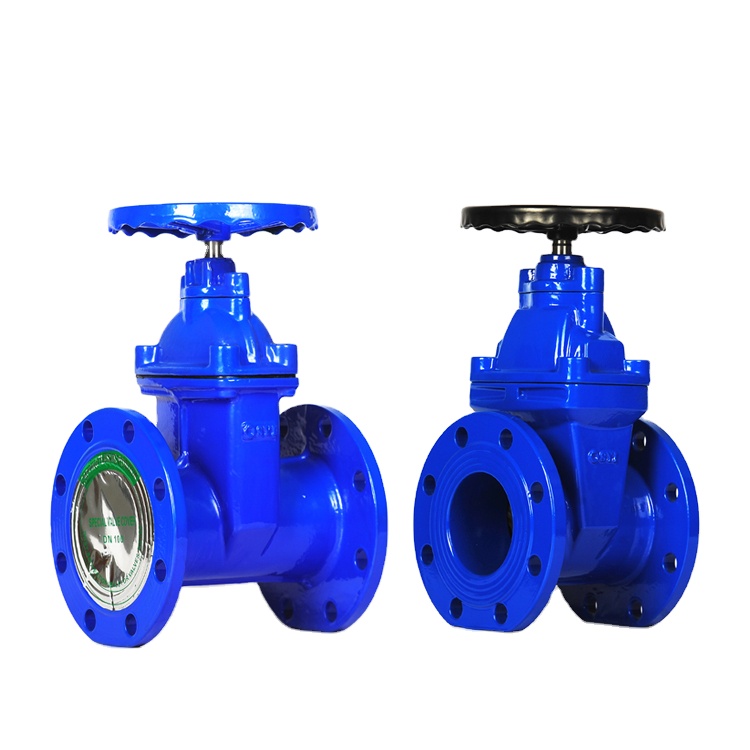

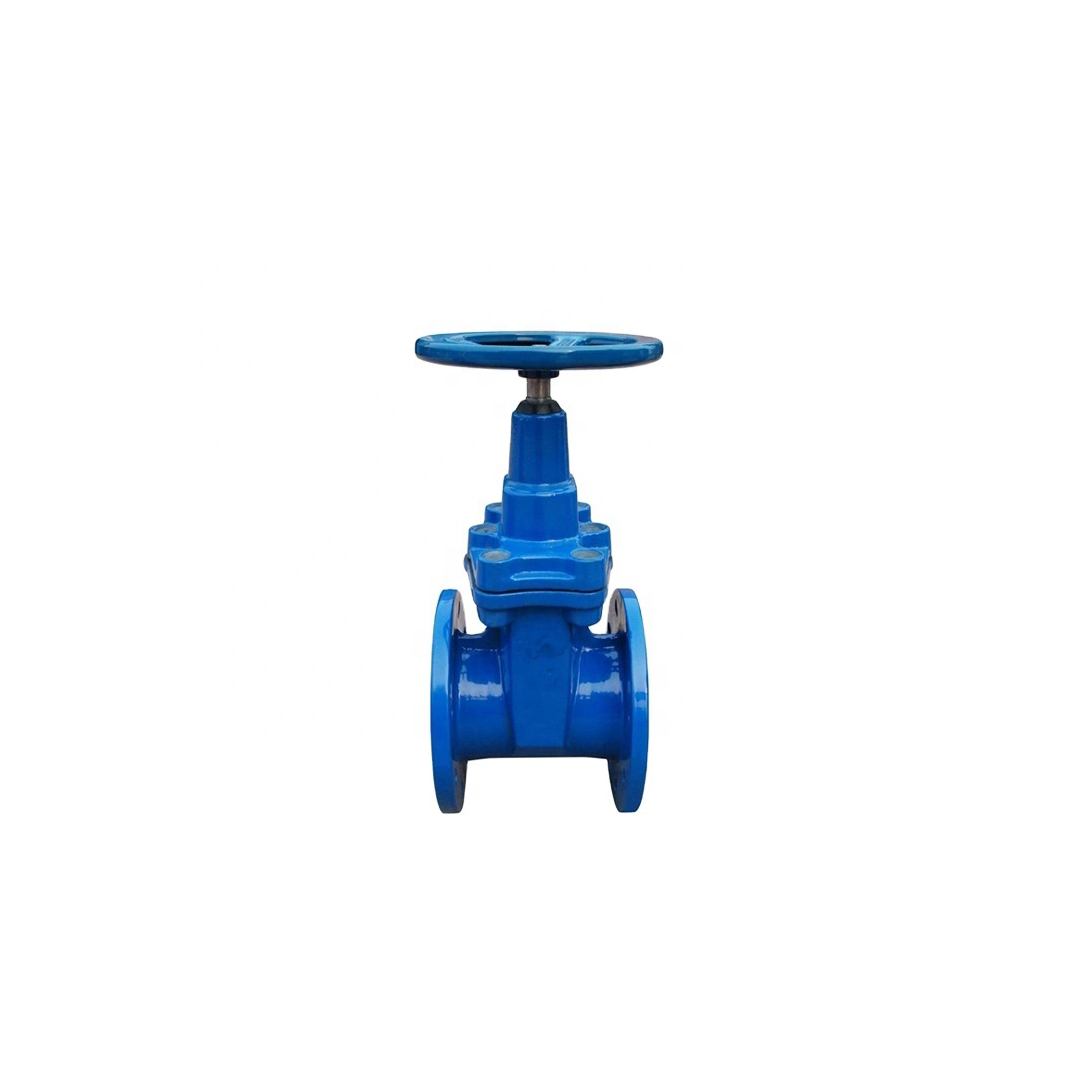

An economy gate valve with PN16 flanged end connections featuring a cast iron body, and a cast bronze seat. The valve is handwheel operated with a cast iron handwheel, and has a non-rising brass stem. Available in sizes: 2” (DN50), 2 ½” (DN65), 3” (DN80),4”  (DN100), 5” (DN125), 6” (DN150), and 8” (DN200). Face-to-face in accordance with BS5150. The valve has a working temperature of -10°C to 120°C at 16  bar, and -10°C to 200°C at 12.8 bar. Maximum working pressure of 16 bar.

KEY FEATURES:

• Cast iron body
• Cast bronze seat
• PN16 flanged ends
• Non-rising stem
• Sizes available: 2” to 8”
• Working temperature range:
  -10°C to 120°C at 16 bar
  -10°C to 200°C at 12.8 bar
• Max. working pressure: 16 bar
