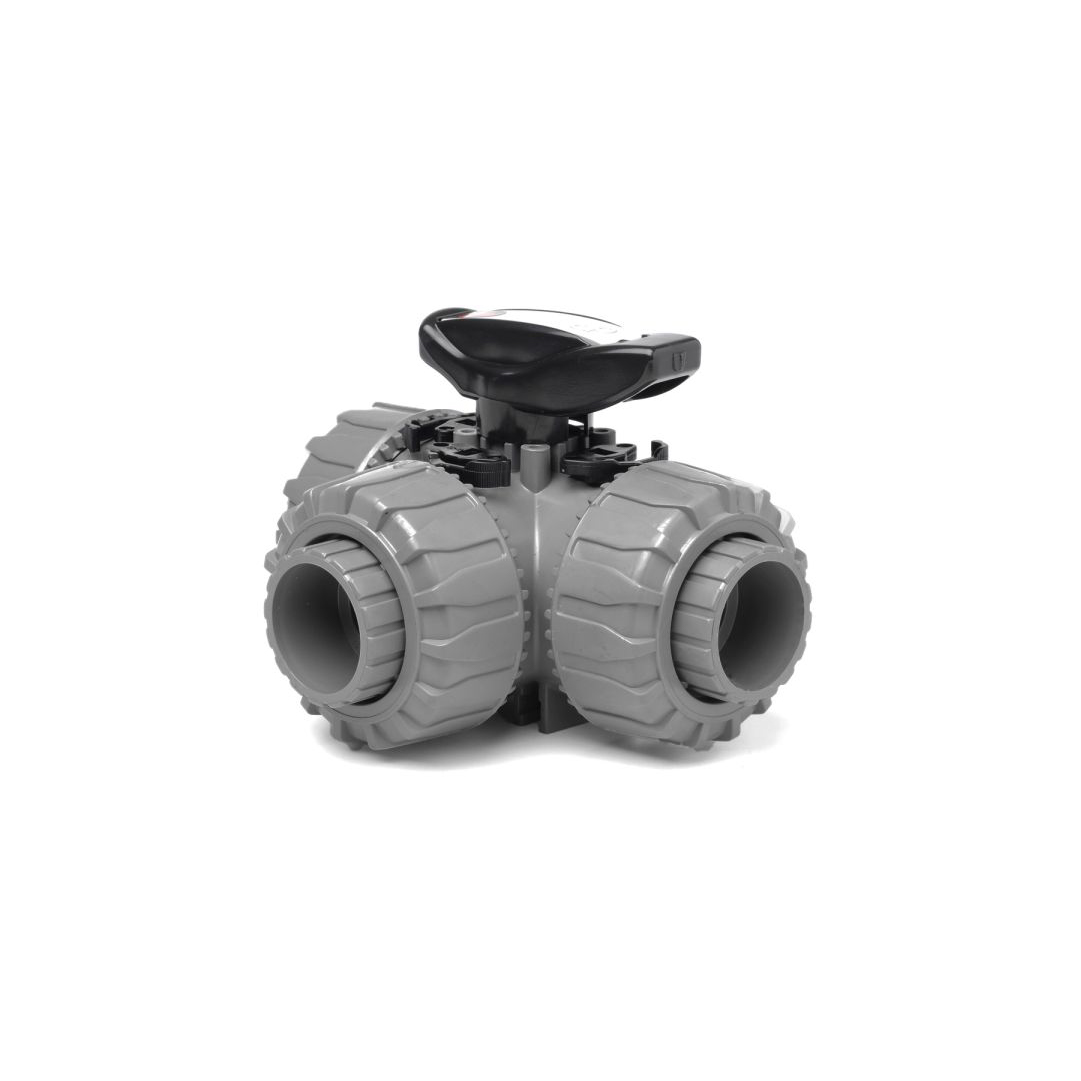

The Durapipe TKD 3 Way PVC Metric Solvent Socket Ball Valve is designed for installation in piping systems, suitable for water and non-hazardous media; corrosive, inert, gaseous and liquid media which have no negative impact on the physical and chemical properties of the body and seal material.
Parts that come into contact with the medium are manufactured from high-grade plastics making them ideally suited to corrosive media.
This 3-way valve is available with T-Port or L-Port configurations and is available with FKM or EPDM seal materials.
Pressure rating: Maximum working pressure: 16 bar at 20ºC.
Details
| End Connection | Metric Solvent Socket |
|---|---|
| Body Material | PVC-U |
| Seal Material | EPDM or FKM |
| Size | 20mm, 25mm, 32mm, 40mm, 50mm, 63mm |
| Design | 3 Way |
| Industry / Approvals | General / Industrial / Process |
| Main Features | L or T Port |
