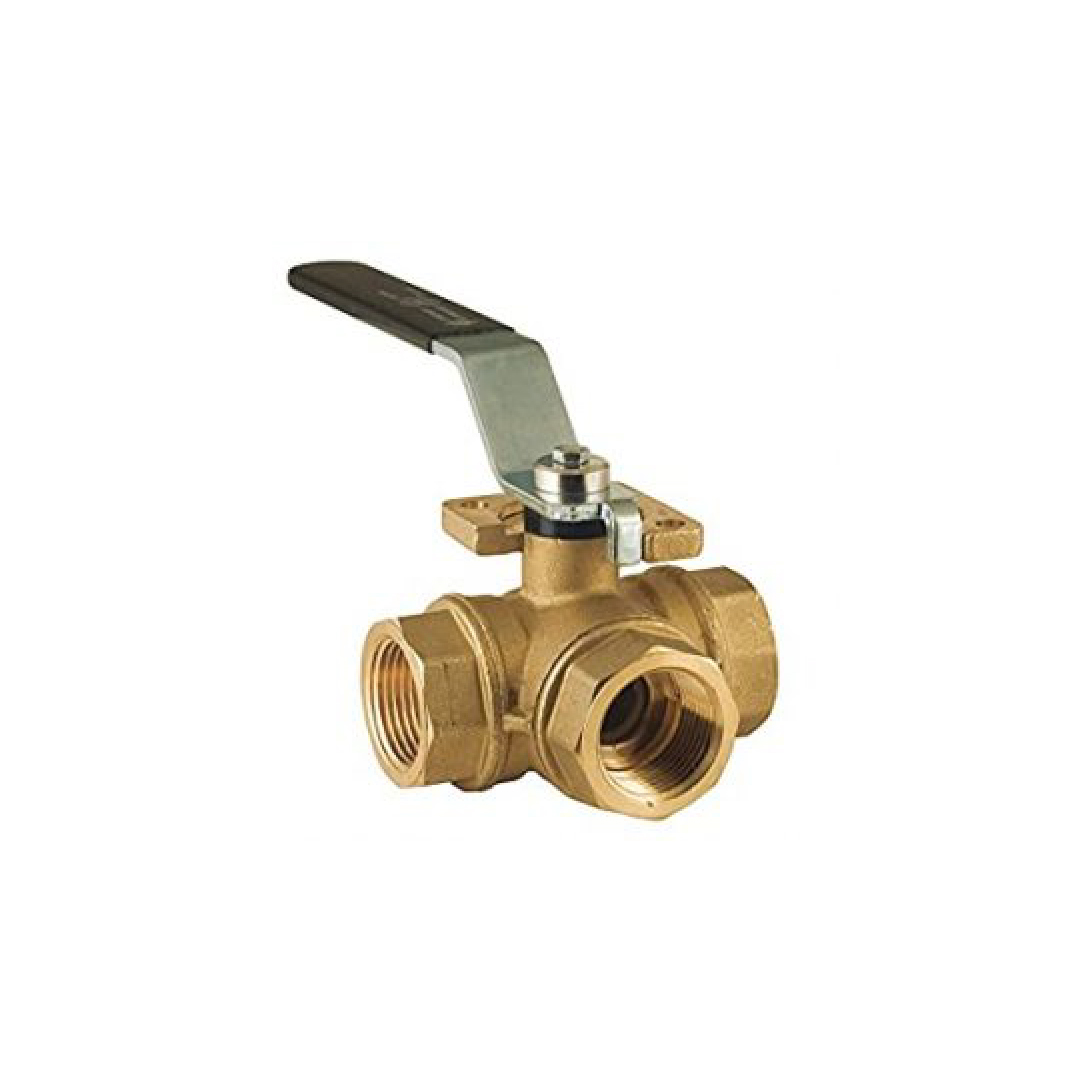

Our Brass Ball Valve Screwed 3 Way is suitable for a range of media and applications; mixing, diverting, compressed air, water and HVAC. A reduced bore, screwed 3 way manual valve featuring a floating ball, supported on four seats and operated via an aluminium handle with vinyl sleeve.
Details
| End Connection | BSP |
|---|---|
| Body Material | Brass |
| Seal Material | PTFE |
| Size | 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65) |
| Design | 3 Way, Reduced Bore |
| Temperature Range | -10°C to 120°C (1/4" to 2"), -15°C to 100°C (2 1/2") |
| Industry / Approvals | HVAC |
| Lever | Manual Lever |
| Pressure | 16 Bar to 50 Bar |
| Actuatable? | No – Manual Only |
