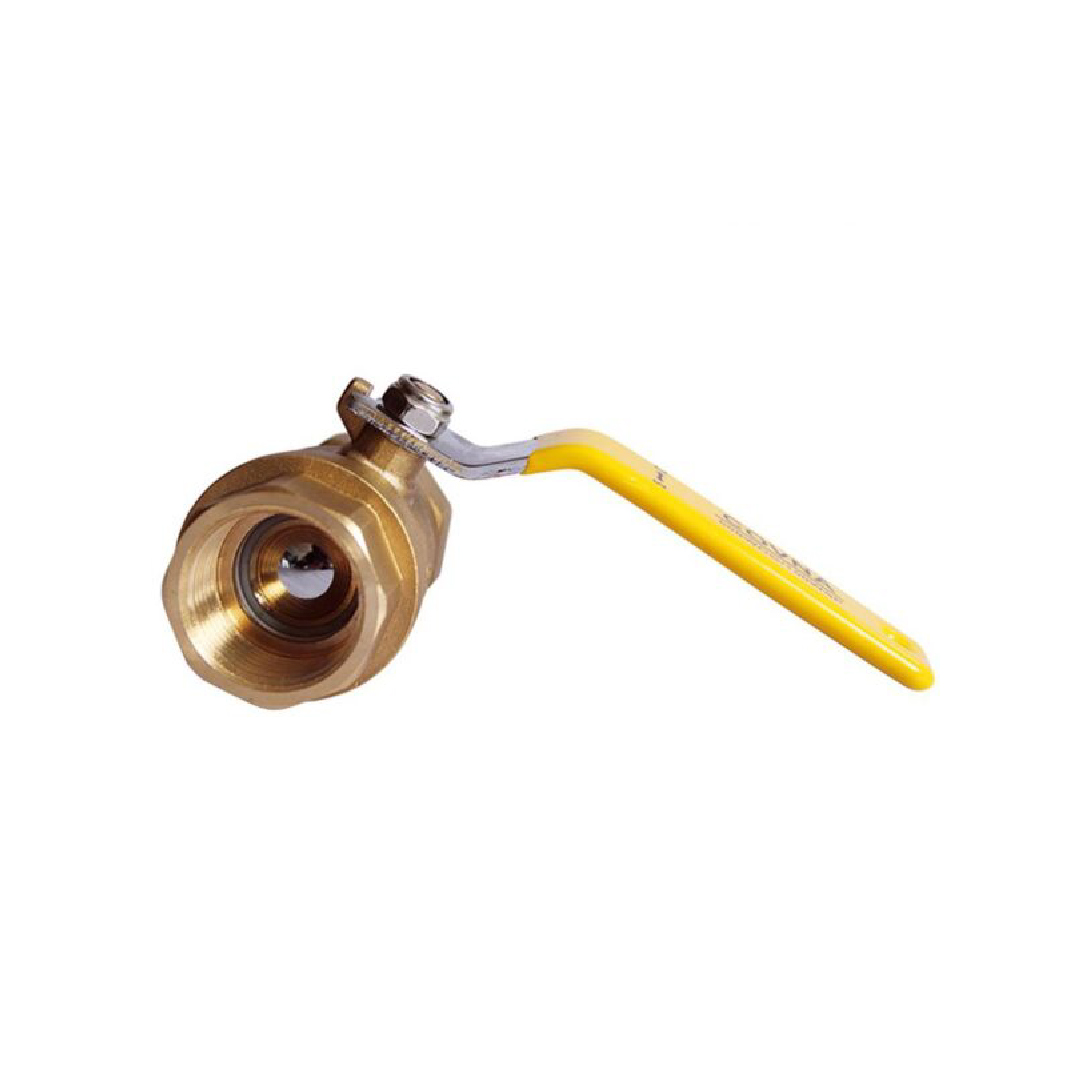

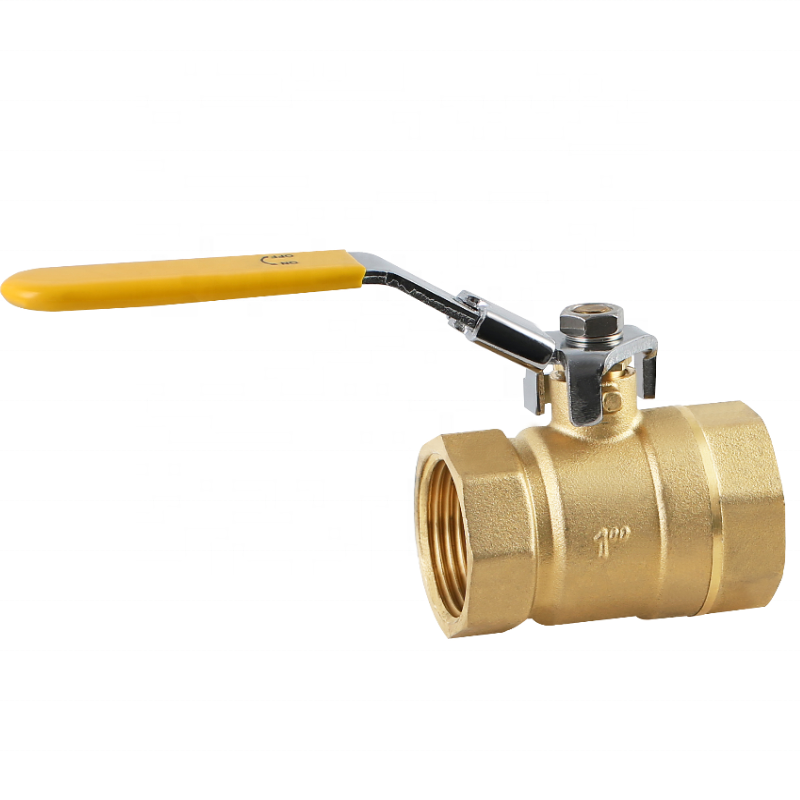

Our Brass Ball Valve BSPT with Locking Lever is suitable for a range of media and applications; isolation of industrial and domestic process, heating, hot water, cold water, oil and air. A full bore, screwed manual valve with Locking Lever in sizes: 1/4″ to 4″.
Details
| End Connection | BSP |
|---|---|
| Body Material | Brass |
| Seat Material | PTFE |
| Size | 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100) |
| Design | Full Bore, Female x Female |
| Industry / Approvals | HVAC |
| Lever | Manual Lockable Lever |
| Temperature Range | -10°C to 110°C |
| Actuatable? | No – Manual Only |
