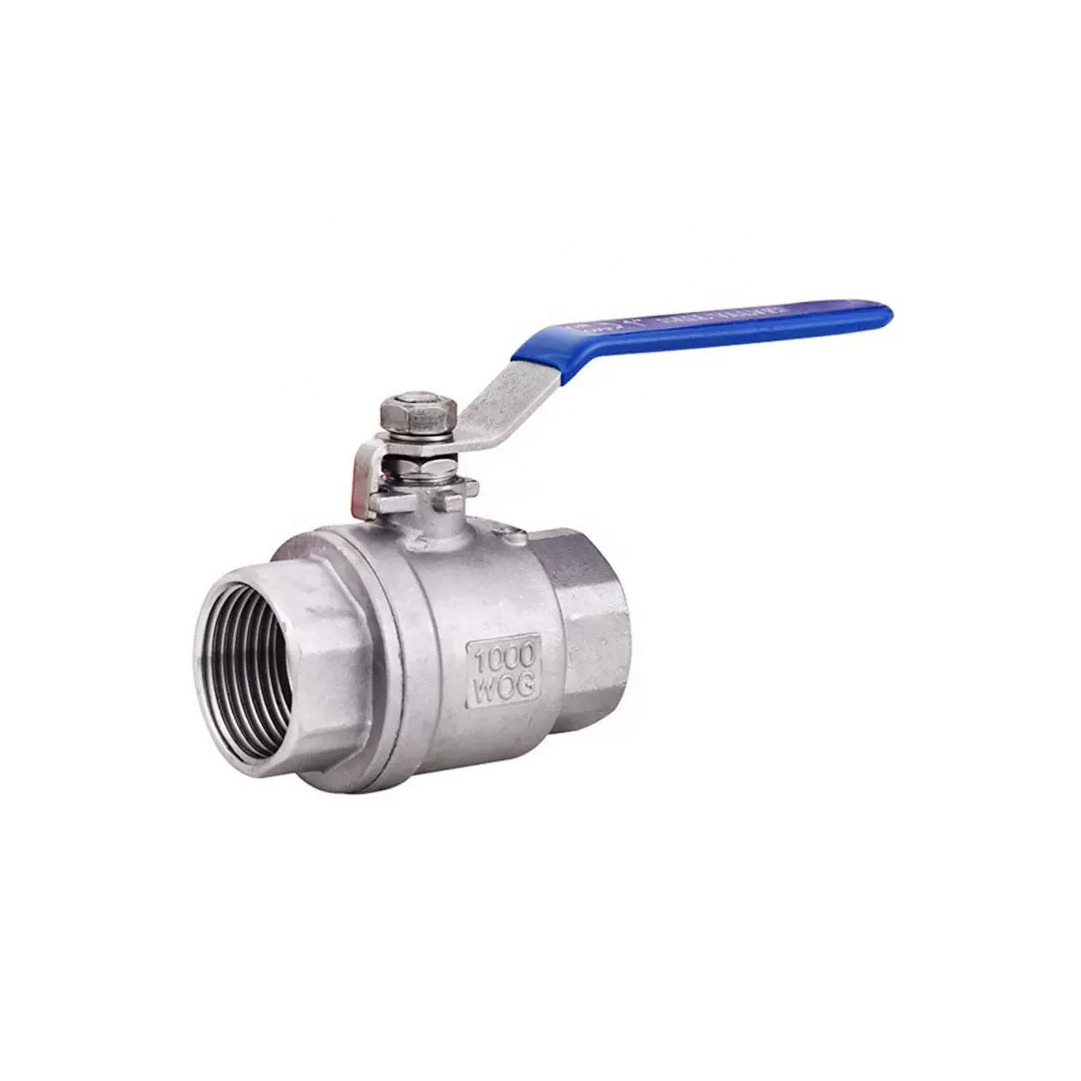

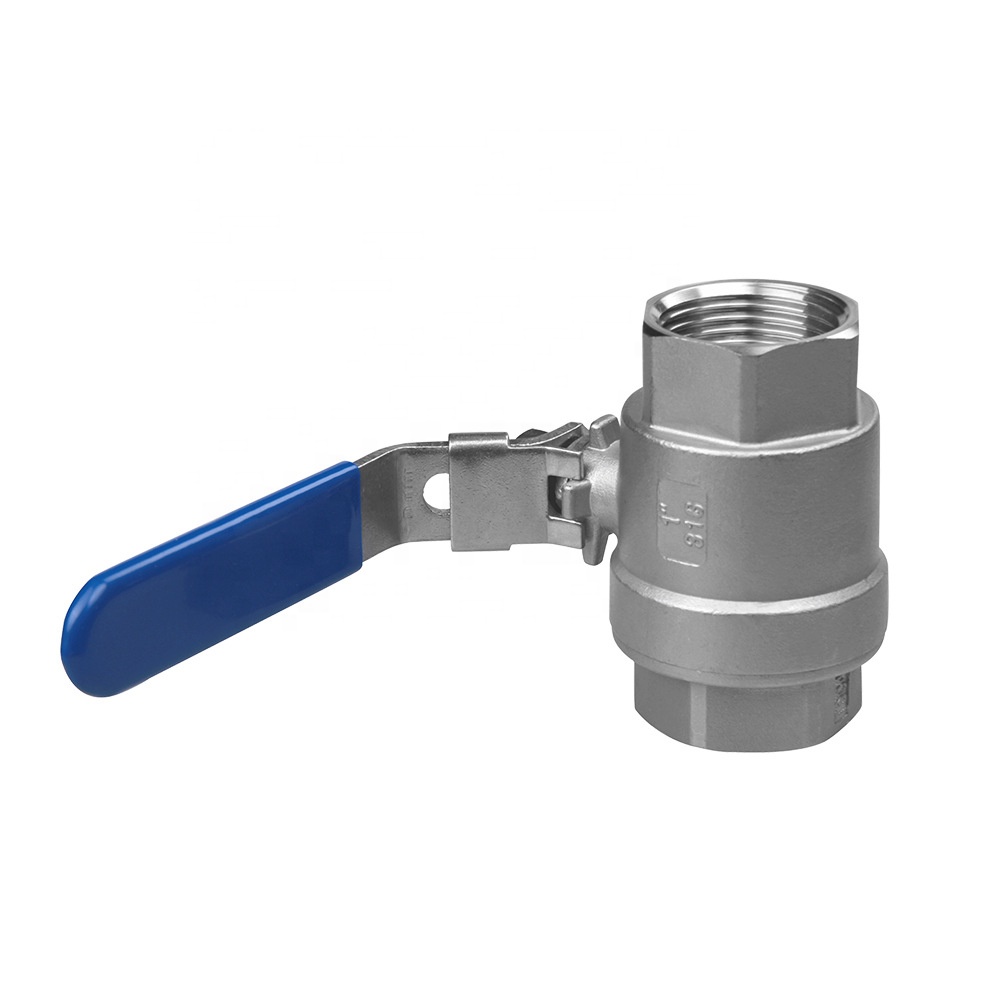

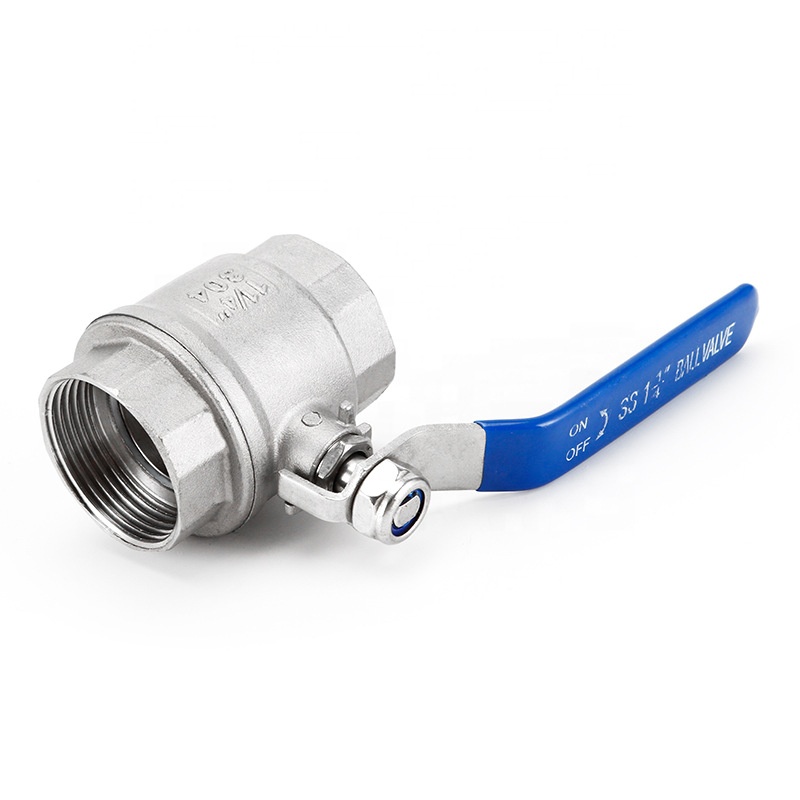

Our economy 2 piece stainless steel ball valve is a full bore ball valve, providing safe operation for both general, industrial, chemical and contaminated applications. It offers both economical and reliable operation expected from a non-maintainable ball valve.
CF8M Stainless Steel Body and PTFE seat. Used to ‘shut-off’ medium flows on a wide range of liquid and gaseous, it is supplied with a lockable lever grip insulated handle and is screwed BSPP.
Working Temperature: -20°C to +180°C
Maximum Working Pressure: 63 bar
Details
| End Connection | BSP, BSPP |
|---|---|
| Body Material | Stainless Steel |
| Seal Material | PTFE |
| Seat Material | PTFE |
| Size | 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80) |
| Design | 2 Piece, Female x Female |
| Industry / Approvals | General / Industrial / Process |
| Lever | Manual Lockable Lever |
| Temperature Range | -20°C to +180°C |
| Actuatable? | No – Manual Only |
