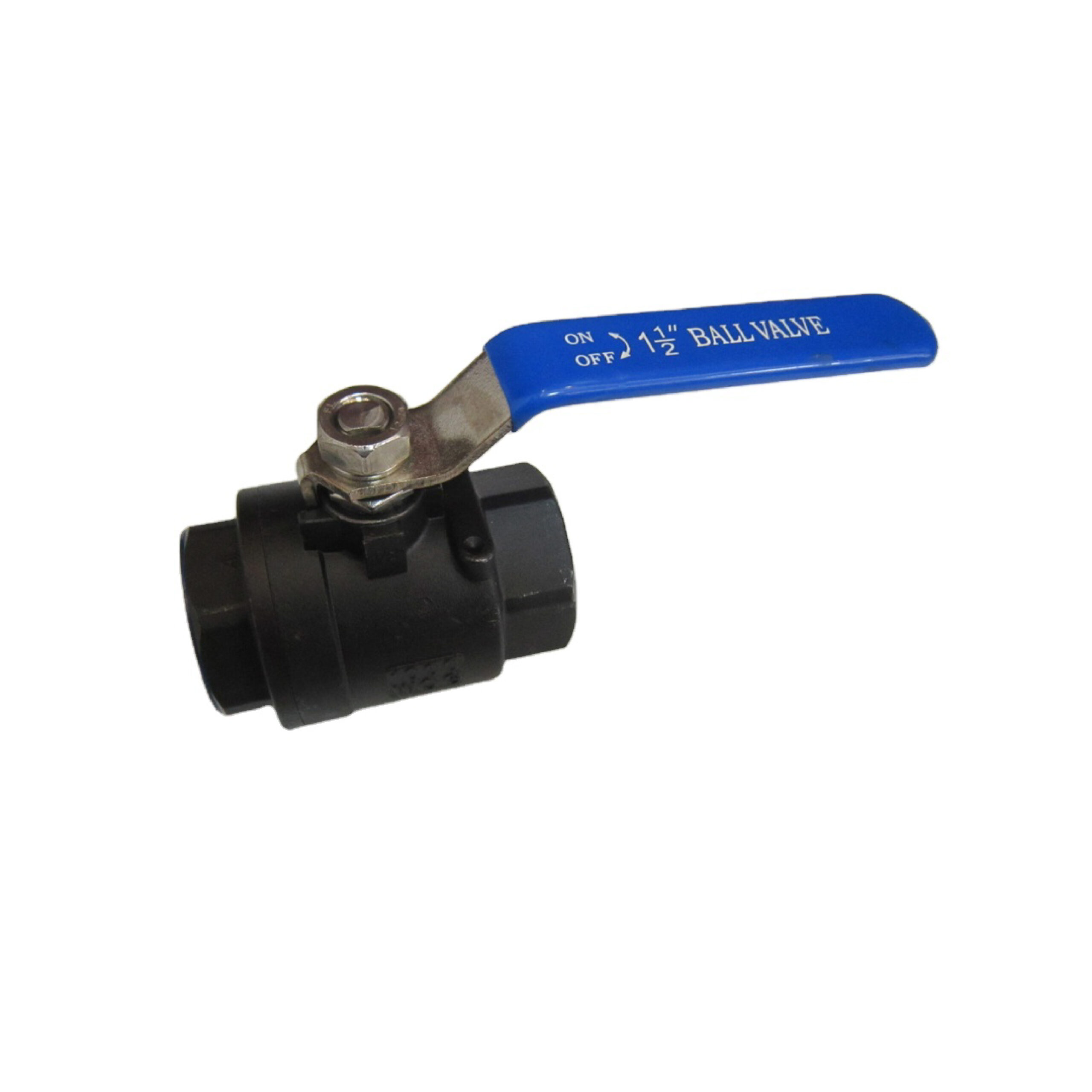

A two piece WCB Carbon Steel ball valve with BSPP screwed end connections, ATEX approval and fitted with anti static device and supplied complete with a lockable lever handle.
This compact and reliable ball valve ensures tight shut off and is versatile over a wide range of flowing media, providing safe operation in both general industrial and chemical applications. Non Maintainable.
Details
| End Connection | BSP, BSPP |
|---|---|
| Body Material | Carbon Steel |
| Seat Material | RPTFE |
| Size | 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50) |
| Design | 2 Piece, Full Bore, Female x Female |
| Industry / Approvals | ATEX |
| Lever | Lockable Manual Lever |
| Temperature Range | -10°C to 180°C |
| Pressure | 1000psi Rated |
| Actuatable? | No – Manual Only |
